Product Brief

WarpEngine™ TCP Optimization Proxy Appliance

WarpEngine™ Enterprise Edition is a scalable network optimization proxy appliance that can handle TCP sessions with little to no overhead. It can be deployed at the customer premise for Enterprise applications, in a Service Provider’s core network or in front of 100’s to 1000’s of servers in a data center.

Performance for WarpEngine™ depends on network variables such as round trip time (RTT), packet loss %, available bandwidth, size of content, and other factors. It is based on Badu’s WarpTCP™ technology, which was developed specifically to perform well in wireless networks.

Product Brief

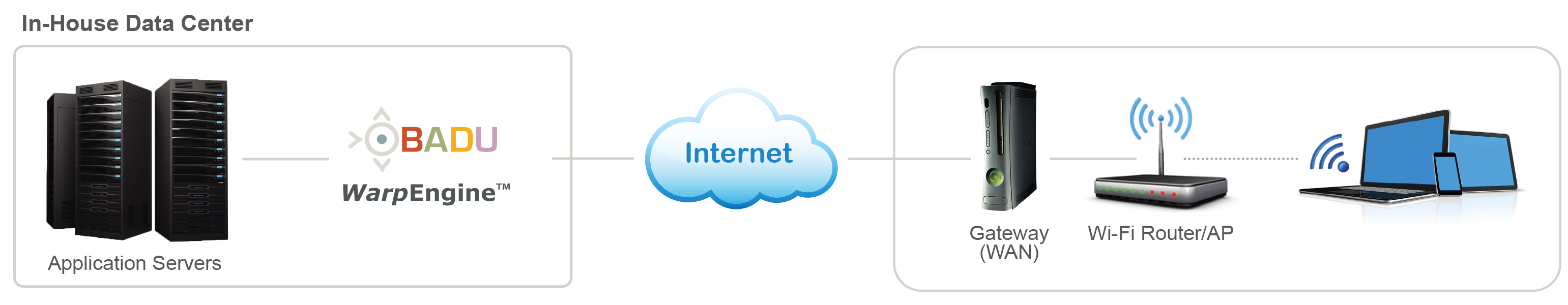

WarpEngine Deployment Diagram

WarpTCP™ — Smarter Congestion Control

TCP was invented 35+ years ago with guaranteed delivery of data in mind, it was never designed for use in massive cloud infrastructures or today’s overly crowded wireless networks. Given the jittery nature of today’s highly-shared wireless networks, TCP often overreacts to congestion and other network variations which results in a drastic drop in data throughput. This overreacting causes a reduction in utilized available bandwidth, which results in a generally poor user experience.

WarpTCP™ is a set of intelligent algorithms that maximize TCP throughput in the face of network variations such as delay, jitter, packet loss and random bandwidth fluctuation. It was especially designed to maintain high TCP throughput in wireless networks such as LTE and Wi-Fi. Compared to competing TCP acceleration solutions, WarpTCP™ does not overreact to temporary or false-alarm congestion, minimizes re-transmissions, and recovers faster from a congestion event.

Use Cases

WarpEngine™ is ideal for deployment in the use cases below:

  • Organizations requiring large file transfers over long network distances
  • VOD (video on demand) and Video Streaming service optimization
  • Content Delivery Networks (CDNs)
  • Enterprise hybrid cloud architecture application optimization
  • Retail/eCommerce sites requiring fast web page loads


The WarpEngine™ benchmarks were measured on an Enterprise Wi-Fi network showing throughput benefit as a function of number of users for various file size transfers.


WarpEngine Benchmark


Free Demo

Discover the benefits that WarpEngine™ delivers with a free hands-on demo. It is fast, risk free, and easy to test.

Technical Specifications

FeatureWarpEngine™ Enterprise Edition
Chassis1U rack, 20″ rack depth
Optimized WAN Capacity1Gbps
Memory16GB DDR3
Hard Drive bays (hot-plug)Up to 4 x 2.5″ hot-plug SSD (SATA or SAS)
Hard DrivesIntel® S3610 200GB 2.5″, Enterprise SSD SATA mix use MLC 6Gbps
RAID ControllerIntegrated hardware RAID
PCI slots2 PCIe 3.0 slots
Embedded NICDual Port 1Gb LOM (management port)
NIC Adapter Options1Gbps dual-port bypass:

  • Copper (RJ45)
  • Single-mode Fiber LX (LC)
  • Multi-mode Fiber SX (LC)
Dual Power SuppliesDual redundant 550W AC platnium power supplies
High AvailabilityDual Raid 1 Hot-plug drives
Hot-plug redundant PSU
Internal Dual SD support
Fan Fault Tolerance
ECC memory
TemperatureOperating: 5°C to 45°C
Non-operating: -40°C to 65°C
Relative Humidity (non-condensing)5% to 95% at amaximum wet bulb temperature of 33°C
Operating Acoustical Noise (typical)33 dBA
Harsh Environment TestingMilitary Standard 810G tested for testing temperature, shock, vibration and altitude NEBS level 3 and ETSI tested.
System Dimensions
(LxWxH); without bezel
545.7mm x 434.0mm x 42.4mm
Rail InformationStatic rails for tool-less mounting in four-post racks with square or unthreaded round holes; or tooled mounting in four-post threaded and two-post (Telecom) racks.
ManagementWarpAdmin™ web-based management tool to monitor TCP sessions and throughput as traffic flows through appliance.

Product Ordering Information

WarpEngine™ Enterprise – Ordering Part Numbers
WE-1GE-2B-2C-U11G Copper with NIC bypass
WE-1GE-2B-2LXLC-U11G Fiber LX (single mode) with NIC bypass
WE-1GE-2B-2SXLC-U11G Fiber SX (multi-mode) with NIC bypass
